Description
Product Details:

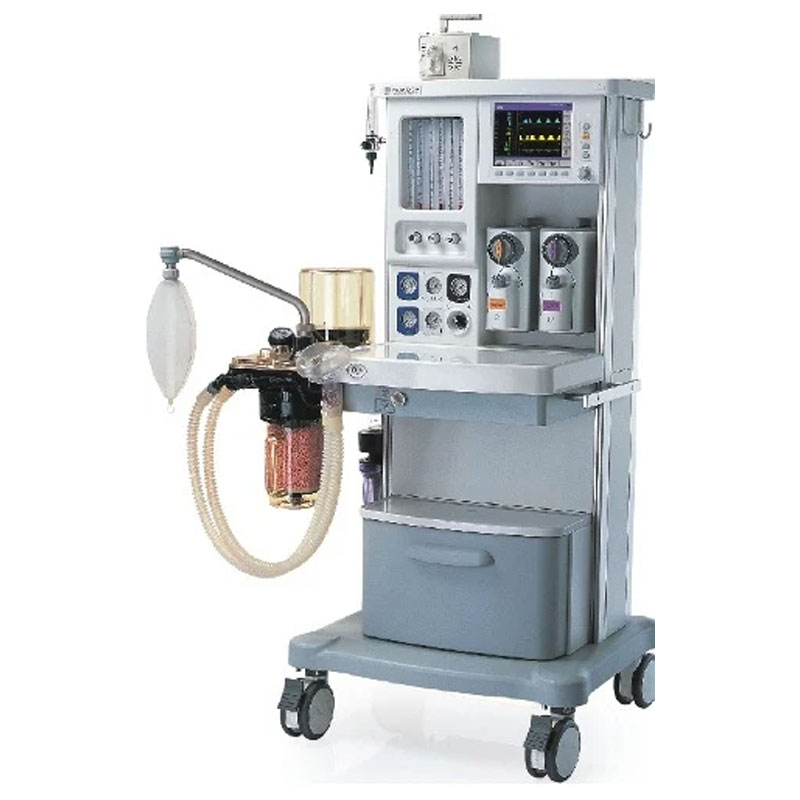

| Model Name/Number | WATO EX-30-20 |
| Positioning | Trolley, Portable |
| Application | Veterinary Use, Medical Use, ICU Use, Operation Use |
| Brand | Mindray |
| Weight | 120 Kg |
| Display Type | TFT |
| Display Size | 7.0 in diogonal |
| Resolution | 800 x 400 p |
| Machine Dimensions | 1375x710x620 mm |
| Top Shelf Dimension | 550mm x 265mm |
| Work Surface Dimension | 820mm x 500cm x 310mm |
| DIN Rail | 320 mm |
- Breathing circuit with CO2bypass valve, which supports CO2canister exchange during surgery
- Information message displayed on screen to confirm the correct assembly of a CO2canister
- Information message displayed for the correct assembly of a breathing circuit to provide safety confirmation
- Multi-selectable display on a colorful LCD screen
- Contemporary and ergonomic considerations
- Electronically-controlled and pneumatically-driven ventilator
- VCV, Pressure mode, SIMV and Manual modes
- Allowing conjunction with up to 2 vaporizers
- On EX-30 and EX-20, the minimum TV is down to 40mL, making it suitable for patients from pediatric to adult without changing the breathing circuit
- External module for sidestream EtCO2measurement for EX-30
- Meets versatile applications, especially for low-flow anesthesia
- Compatible with Mindray patient monitors with a pre-designed mounting kit
